Alternate CS Field

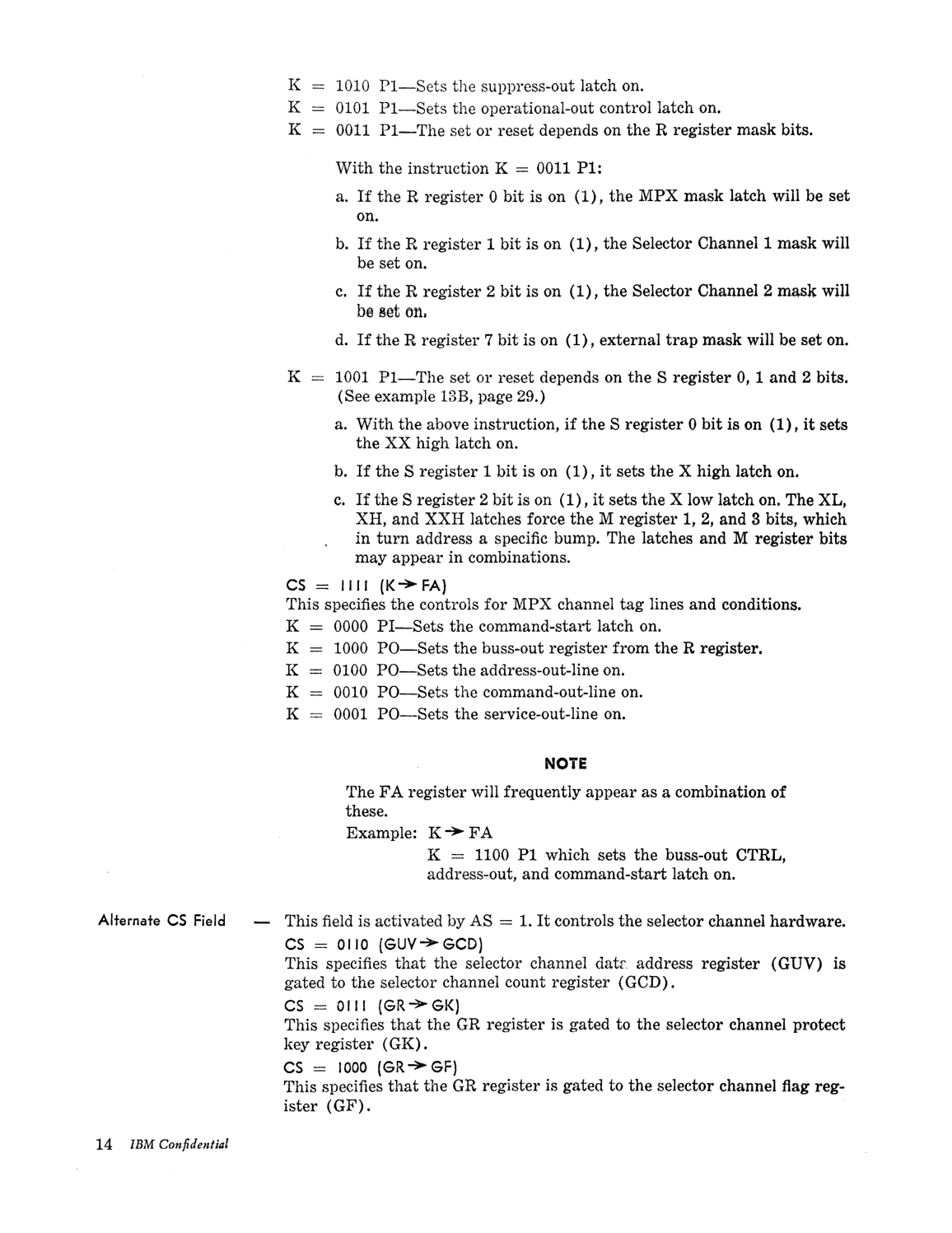

K 1010 PI-Sets the suppress-out latch on.
K - 0101 PI-Sets the operational-out control latch on.
K 0011 PI-The set or reset depends on the R register mask bits.
With the instruction K
the R register
bit is on
the MPX mask latch will be set
the R register 1 bit is on (1), the Selector Channel 1 mask will
be set on.
the R register 2 bit is on (1), the Selector Channel 2 mask will
d. If the R register 7 bit is on (1), external trap mask will be set on.
K - 1001 PI-The set or reset depends on the S register 0, 1 and 2 bits.
(See example 13B, page 29.)
a. With the above instruction, if the S register 0 bit is on (1), it sets
the XX high latch on.
the S register 1 bit is on (1), it sets the X high latch on.
c. If the S register 2 bit is on (1), it sets the X low latch on. The XL,
XH, and XXH latches force the M register 1, 2, and 3 bits, which
in turn address a specific bump. The latches and M register bits
may appear in combinations.
CS - IIII
This specifies the controls for MPX channel tag lines and conditions.
K - 0000 PI-Sets the command-start latch on.
K - 1000 PO-Sets the buss-out register from the R register.
K - 0100 PO-Sets the address-out-line on.
K 0010 PO-Sets the command-out-line on.
K - 0001 PO-Sets the service-out-line on.
The FA register will frequently appear as a combination of
1100 P1 which sets the buss-out CTRL,
address-out, and command-start latch on.
This field is activated by AS
= 1. It
controls the selector channel hardware.
This specifies that the selector channel dak address register (GUV) is
gated to the selector channel count register (GCD).
This specifies that the GR register is gated to the selector channel protect
key register (GK).
This specifies that the GR register is gated to the selector channel flag reg-
