For Unit Record Output Device Class
Code Device Type X'90' IBM 2520 Card Punch
X'88' IBM 1442 Card Punch
X'84' IBM 3525 Card Punch
X'82' IBM 2540 Card Punch X'80' Card Punch
X'4A' IBM 4245 Printer
X'47' IBM 3262 Printer
X'46' IBM 3289 Printer
X'45' IBM 3800 Printing Subsystem
X'44' IBM 1443 Printer
X'43' IBM 3203 Printer
X'42' IBM 3211 Printer
X'41' IBM 1403 Printer X'40' Printer
X'24' IBM 1018 Paper Tape Punch X'20' Tape Punch
For Magnetic Tape Device Class
Code Device Tape X'80' IBM 2401 Tape Drive X'40' IBM 2415 Tape Drive X'20' IBM 2420 Tape Drive X'10' IBM 3420 Tape Drive X'08' IBM 3410/3411 Tape Drive X'04' IBM 8809 Tape Drive X'02' IBM 3430 Tape Drive
For Direct Access Storage Device Class
Code Device Type X'80' IBM 2301 Parallel Drum X'80' IBM 2303 Serial Drum X'80' IBM 2311 Disk Storage Drive X'80' IBM 2321 Data Cell Drive X'40' IBM 2314 Disk Storage Facility X'40' IBM 2319 Disk Storage Facility X'20' IBM 3380 Disk Storage Facility X'10' IBM 3330 Disk Storage Facility X'10' IBM 3333 Disk Storage and Control X'08' IBM 3350 Disk Storage Facility X'04' IBM 3375 Disk Storage Facility X'02' IBM 2305 Fixed Head Storage Device X'01' IBM 3340 Disk Storage Facility

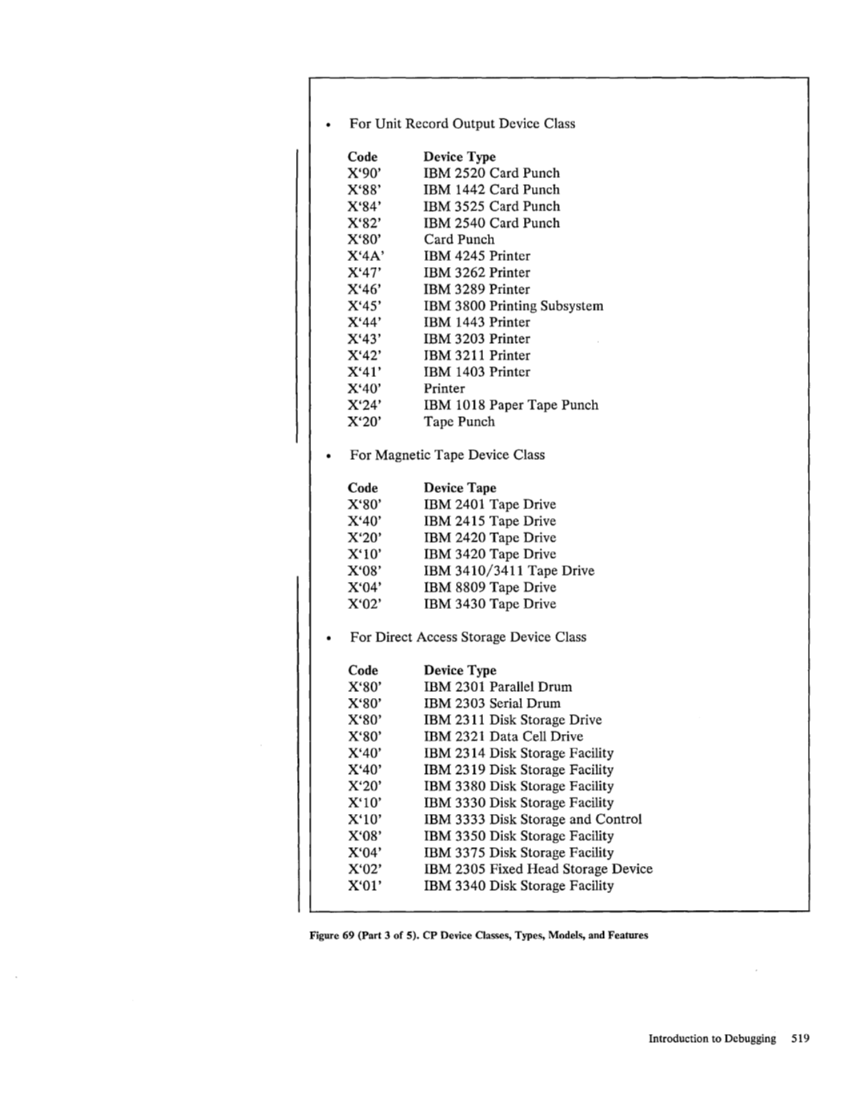

Figure 69 (Part 3 of 5). CP Device Classes, Types, Models, and Features
Introduction to Debugging 519
For Special Device'Class
Code X'80' X'40' X'20' X'04' X'01' Device Type
Channel-to-Channel Device (CTCA or 3088) 370X Programmable Communications Controller
3851 Mass Storage Controller
SRF (7443) device
Device unsupported by VM/SP For Fixed-Block Storage Device Class
Code X'02' X'01' X'OO' Note:
Device Type 3370 3310 Generic Fixed-Block Note)
Code X'OO' applies to a device whose specific type CP has
not yet determined. The proper bit value is assigned when
a 'Read Device Characteristics' command is issued at IPL. MODEL CODES (Column 35 in Accounting Card)
As specified in the RDEVICE macro at system generation.
FEATURE CODES (Column 36 in Accounting Card) For Printer Devices
Code X'01' Feature
UCS
Figure 69 (Part 4 of 5). CP Device Classes, Types, Models, and Features 520 VM/SP System Programmer's Guide
