8.11 AR (Display access registers)

8.11.1 Function

Display the current contents of the access registers.

8.11.2 Syntax

Descriptive

AR

Diagram

Êʬ¬¬ AR ¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬ÊÍ

8.11.3 Parameter

None.

8.11.4 Examples

Example 1:

Display the access registers.

HHC00013I Herc command: 'ar'

HHC02272I Access registers

HHC02272I CP00: AR00=00000000 AR01=00000000 AR02=0000062A AR03=87465380

HHC02272I CP00: AR04=87461860 AR05=07F51080 AR06=87465190 AR07=00000000

HHC02272I CP00: AR08=8746531C AR09=070D0060 AR10=00000000 AR11=00000000

HHC02272I CP00: AR12=00000000 AR13=00000000 AR14=00000000 AR15=00000000

Figure 22: AR command

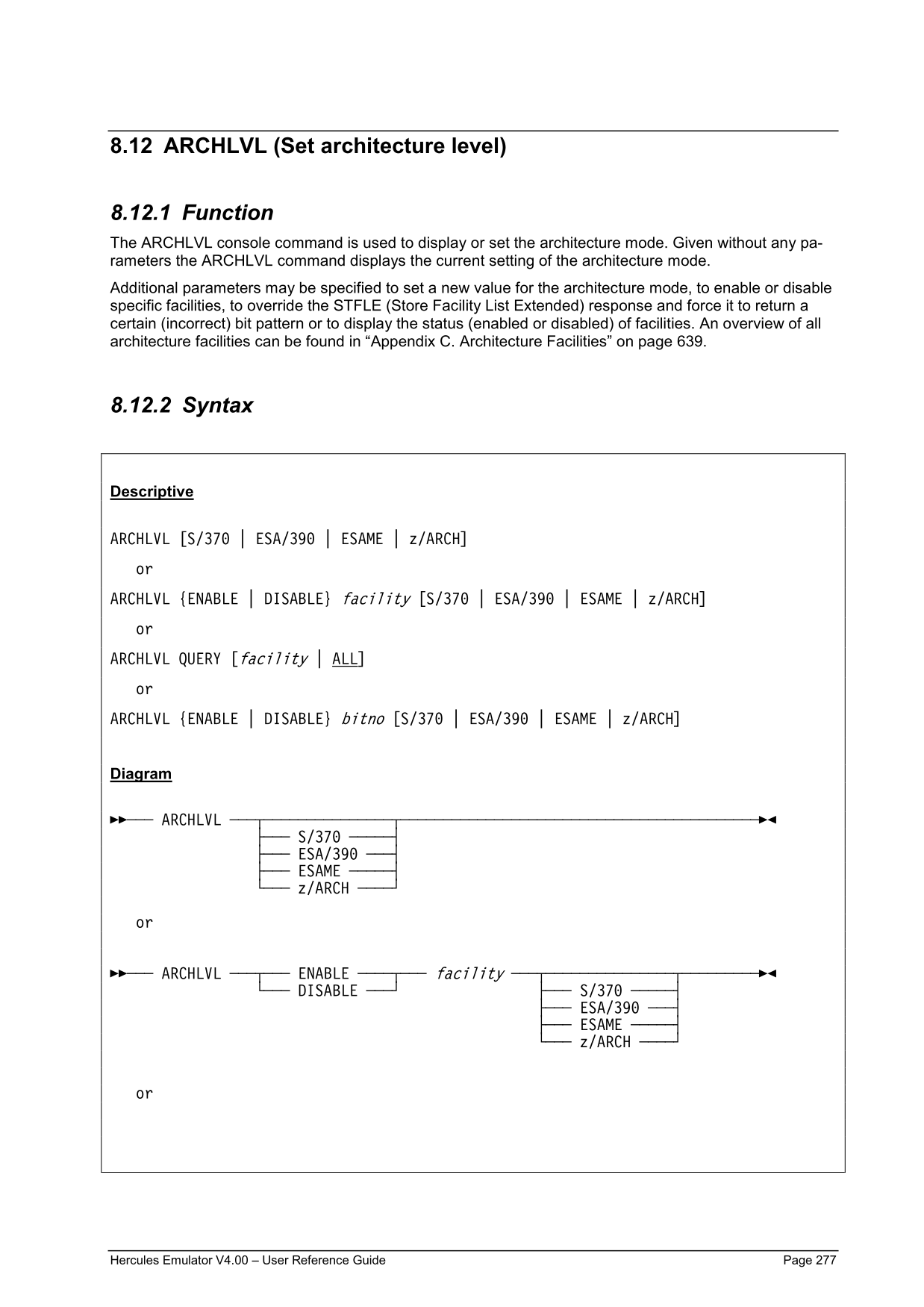

8.12 ARCHLVL (Set architecture level)

8.12.1 Function

The ARCHLVL console command is used to display or set the architecture mode. Given without any pa-
rameters the ARCHLVL command displays the current setting of the architecture mode.

Additional parameters may be specified to set a new value for the architecture mode, to enable or disable
specific facilities, to override the STFLE (Store Facility List Extended) response and force it to return a
certain (incorrect) bit pattern or to display the status (enabled or disabled) of facilities. An overview of all
architecture facilities can be found in “

8.12.2 Syntax

Descriptive

or

ARCHLVL facility

or

ARCHLVL facility ALL]

or

bitno

Diagram

Êʬ¬¬ ARCHLVL ¬¬¬§¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬§¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬ÊÍ

¬¬¬¬¬«

or

Êʬ¬¬ ARCHLVL ¬¬¬§¬¬¬ ¬¬¬¬§¬¬¬ facility ¬¬¬§¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬§¬¬¬¬¬¬¬¬¬ÊÍ

¬¬¬¬¬«

or
