8.58.3 Parameter

Help

Display help with all available ECPSVM options.

STats

Show statistical counters.

DISable

Disable all ECPS:VM features. This is the default if ECPSVM is not coded.

ENable

Enable all ECPS:VM features.

DEBUG

Debug ECPS:VM features.

NOdebug

Turn debug modus off for ECPS:VM features.

Level

Set/show ECPS:VM level.

nn

The value nn specifies the support level that is reported to the operating system.

8.58.4 Examples

Example 1:

Enable the ECPS:VM features.

HHC00013I Herc command: 'ecpsvm enable'

HHC01719I ECPS:VM Command processor invoked

HHC01707I ECPS:VM VM ASSIST feature SVC Enabled

HHC01707I ECPS:VM VM ASSIST feature SSM Enabled

HHC01707I ECPS:VM VM ASSIST feature LPSW Enabled

HHC01707I ECPS:VM VM ASSIST feature STNSM Enabled

HHC01707I ECPS:VM VM ASSIST feature STOSM Enabled

HHC01707I ECPS:VM VM ASSIST feature SIO Enabled

HHC01707I ECPS:VM VM ASSIST feature VTIMER Enabled

HHC01707I ECPS:VM VM ASSIST feature STCTL Enabled

HHC01707I ECPS:VM VM ASSIST feature LCTL Enabled

HHC01707I ECPS:VM VM ASSIST feature DIAG Enabled

HHC01707I ECPS:VM VM ASSIST feature IUCV Enabled

HHC01708I All ECPS:VM VM ASSIST features Enabled

HHC01707I ECPS:VM CP ASSIST feature FREE Enabled

HHC01707I ECPS:VM CP ASSIST feature FRET Enabled

HHC01707I ECPS:VM CP ASSIST feature LCKPG Enabled

HHC01707I ECPS:VM CP ASSIST feature ULKPG Enabled

HHC01707I ECPS:VM CP ASSIST feature SCNRU Enabled

HHC01707I ECPS:VM CP ASSIST feature SCNVU Enabled

HHC01707I ECPS:VM CP ASSIST feature DISP0 Enabled

HHC01707I ECPS:VM CP ASSIST feature DISP1 Enabled

HHC01707I ECPS:VM CP ASSIST feature DISP2 Enabled

HHC01707I ECPS:VM CP ASSIST feature DNCCW Enabled

HHC01707I ECPS:VM CP ASSIST feature DFCCW Enabled

HHC01707I ECPS:VM CP ASSIST feature FCCWS Enabled

HHC01707I ECPS:VM CP ASSIST feature CCWGN Enabled

HHC01707I ECPS:VM CP ASSIST feature UXCCW Enabled

HHC01707I ECPS:VM CP ASSIST feature TRBRG Enabled

HHC01707I ECPS:VM CP ASSIST feature TRLOK Enabled

HHC01707I ECPS:VM CP ASSIST feature VIST Enabled

HHC01707I ECPS:VM CP ASSIST feature VIPT Enabled

HHC01707I ECPS:VM CP ASSIST feature STEVL Enabled

HHC01707I ECPS:VM CP ASSIST feature FREEX Enabled

HHC01707I ECPS:VM CP ASSIST feature FRETX Enabled

HHC01707I ECPS:VM CP ASSIST feature PMASS Enabled

HHC01707I ECPS:VM CP ASSIST feature LCSPG Enabled

HHC01708I All ECPS:VM CP ASSIST features Enabled

HHC01722I ECPS:VM Command processor complete

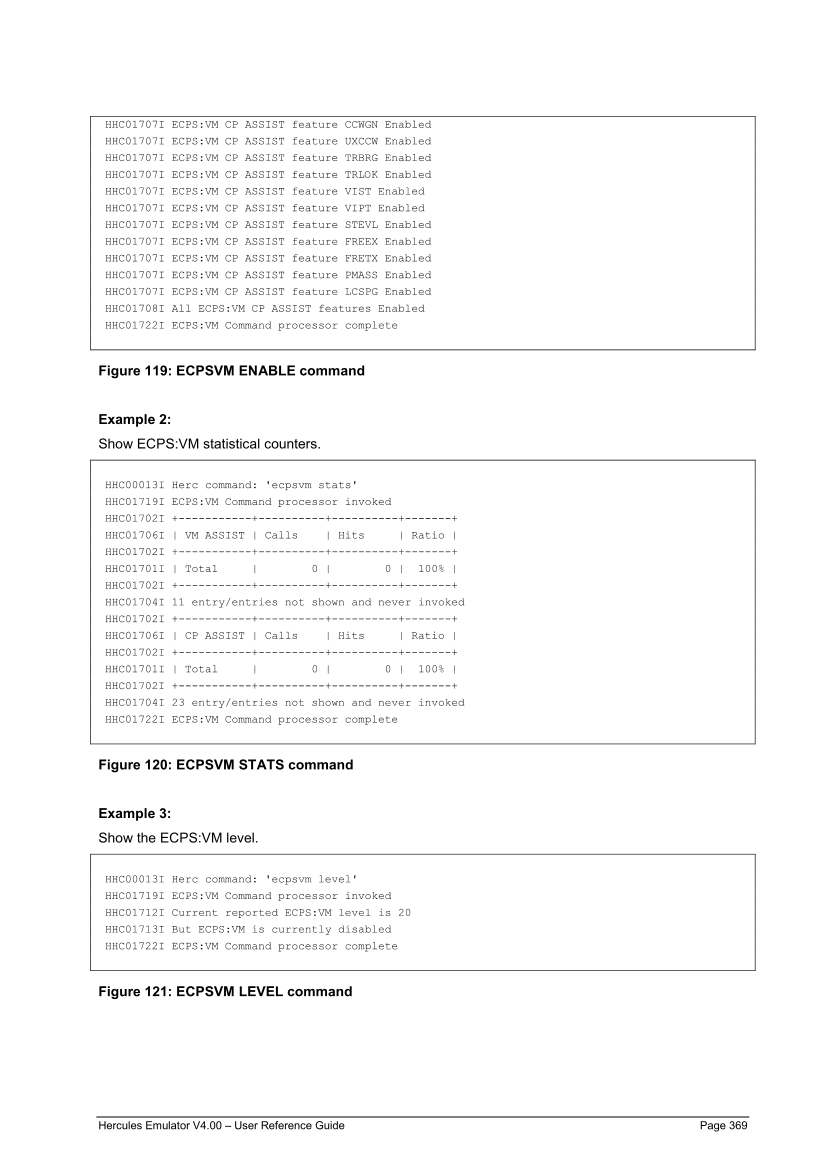

Figure 119: ECPSVM ENABLE command

Example 2:

Show ECPS:VM statistical counters.

HHC00013I Herc command: 'ecpsvm stats'

HHC01719I ECPS:VM Command processor invoked

HHC01702I +-----------+----------+----------+-------+

HHC01706I | VM ASSIST | Calls | Hits | Ratio |

HHC01702I +-----------+----------+----------+-------+

HHC01701I | Total | 0 | 0 | 100% |

HHC01702I +-----------+----------+----------+-------+

HHC01704I 11 entry/entries not shown and never invoked

HHC01702I +-----------+----------+----------+-------+

HHC01706I | CP ASSIST | Calls | Hits | Ratio |

HHC01702I +-----------+----------+----------+-------+

HHC01701I | Total | 0 | 0 | 100% |

HHC01702I +-----------+----------+----------+-------+

HHC01704I 23 entry/entries not shown and never invoked

HHC01722I ECPS:VM Command processor complete

Figure 120: ECPSVM STATS command

Example 3:

Show the ECPS:VM level.

HHC00013I Herc command: 'ecpsvm level'

HHC01719I ECPS:VM Command processor invoked

HHC01712I Current reported ECPS:VM level is 20

HHC01713I But ECPS:VM is currently disabled

HHC01722I ECPS:VM Command processor complete

Figure 121: ECPSVM LEVEL command
