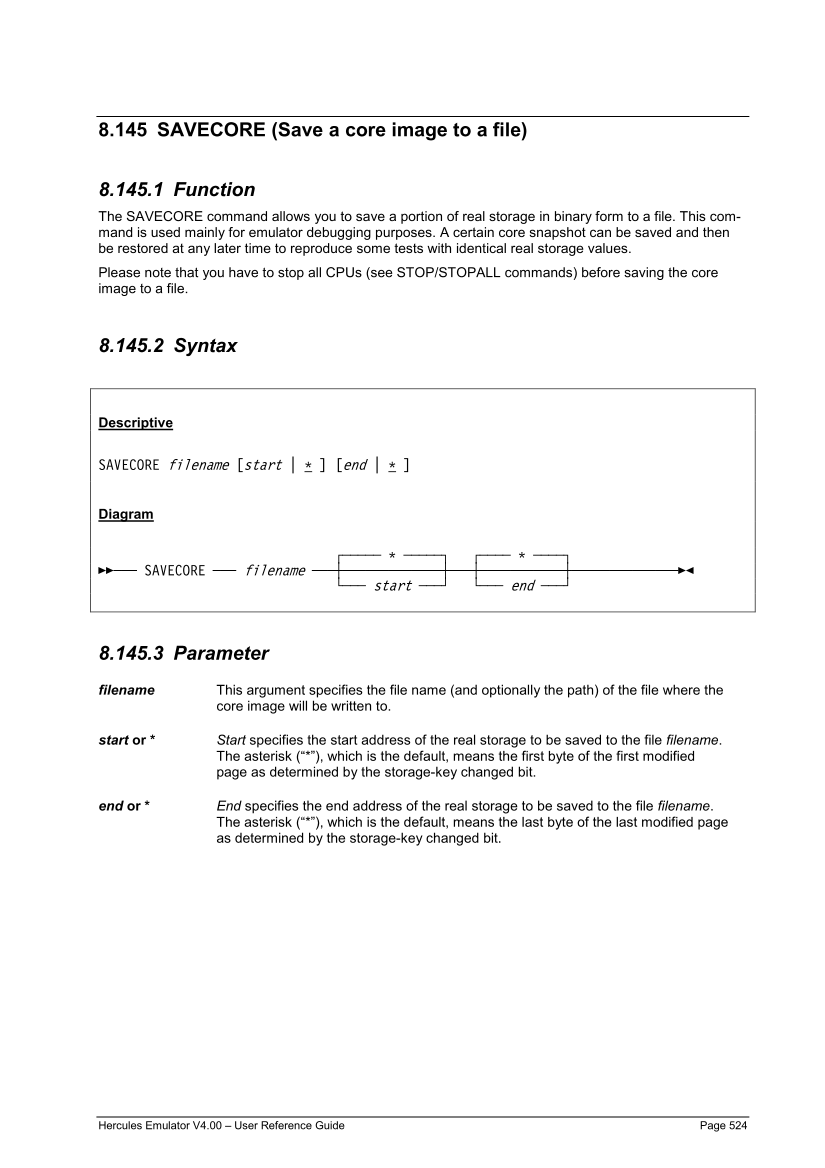

8.145 SAVECORE (Save a core image to a file)

8.145.1 Function

The SAVECORE command allows you to save a portion of real storage in binary form to a file. This com-
mand is used mainly for emulator debugging purposes. A certain core snapshot can be saved and then
be restored at any later time to reproduce some tests with identical real storage values.

Please note that you have to stop all CPUs (see STOP/STOPALL commands) before saving the core
image to a file.

8.145.2 Syntax

Descriptive

filename [start * ] [end * ]

Diagram

~¬¬¬¬¬ * ¬¬¬¬¬®
~¬¬¬¬
* ¬¬¬¬®

filename ¬¬¬¦¬¬¬¬¬¬¬¬¬¬¬¬¬¦¬¬¬¦¬¬¬¬¬¬¬¬¬¬¬¦¬¬¬¬¬¬¬¬¬¬¬¬¬¬ÊÍ

start end

8.145.3 Parameter

filename

This argument specifies the file name (and optionally the path) of the file where the
core image will be written to.

start or *

Start specifies the start address of the real storage to be saved to the file filename.
The asterisk (“*”), which is the default, means the first byte of the first modified
page as determined by the storage-key changed bit.

end or *

End specifies the end address of the real storage to be saved to the file filename.
The asterisk (“*”), which is the default, means the last byte of the last modified page
as determined by the storage-key changed bit.

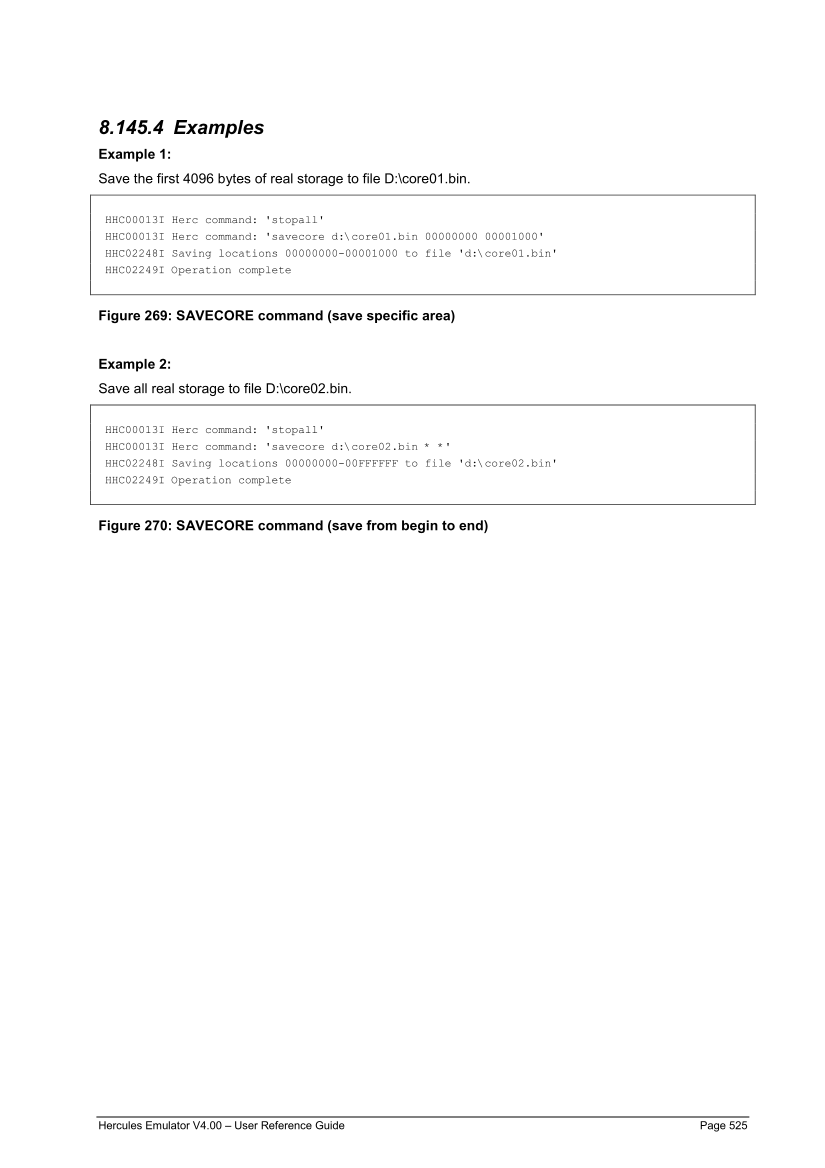

8.145.4 Examples

Example 1:

Save the first 4096 bytes of real storage to file D:\core01.bin.

HHC00013I Herc command: 'stopall'

HHC00013I Herc command: 'savecore d:\core01.bin 00000000 00001000'

HHC02248I Saving locations 00000000-00001000 to file 'd:\core01.bin'

HHC02249I Operation complete

Figure 269: SAVECORE command (save specific area)

Example 2:

Save all real storage to file D:\core02.bin.

HHC00013I Herc command: 'stopall'

HHC00013I Herc command: 'savecore d:\core02.bin * *'

HHC02248I Saving locations 00000000-00FFFFFF to file 'd:\core02.bin'

HHC02249I Operation complete

Figure 270: SAVECORE command (save from begin to end)
