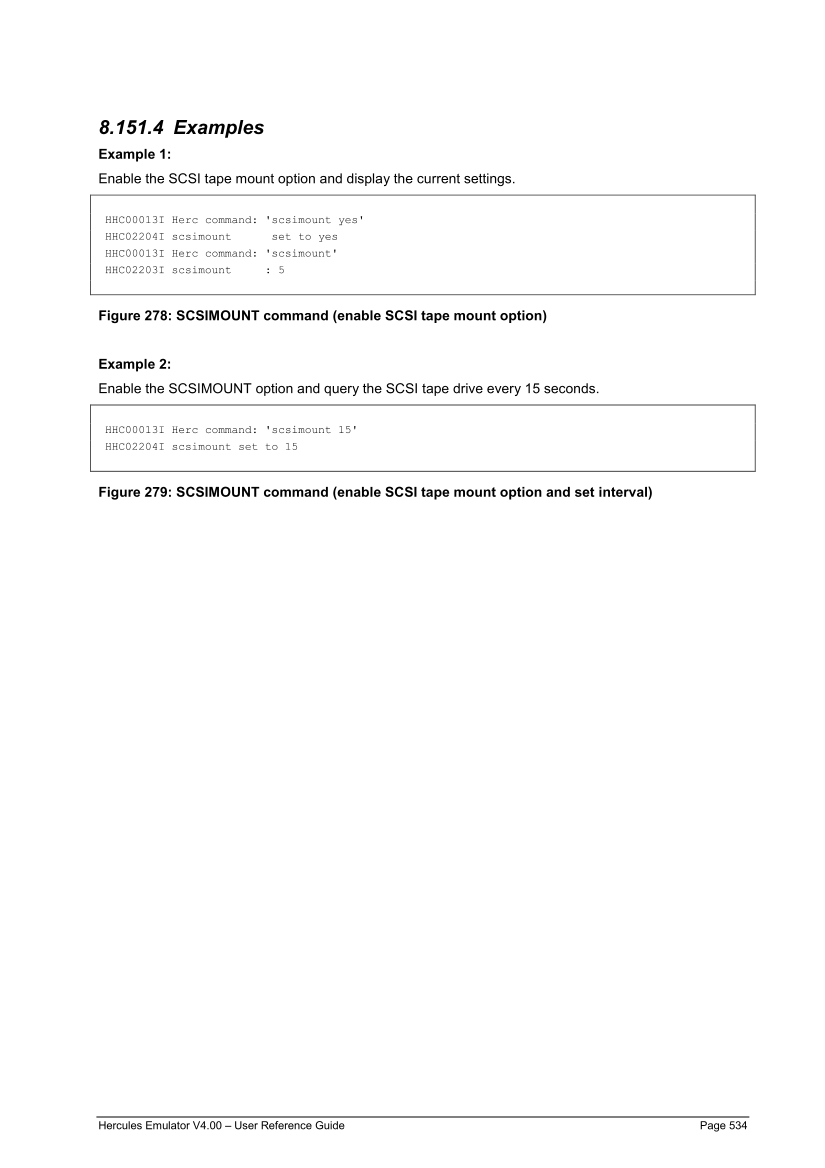

8.151.4 Examples

Example 1:

Enable the SCSI tape mount option and display the current settings.

HHC00013I Herc command: 'scsimount yes'

HHC02204I scsimount set to yes

HHC00013I Herc command: 'scsimount'

HHC02203I scsimount : 5

Figure 278: SCSIMOUNT command (enable SCSI tape mount option)

Example 2:

Enable the SCSIMOUNT option and query the SCSI tape drive every 15 seconds.

HHC00013I Herc command: 'scsimount 15'

HHC02204I scsimount set to 15

Figure 279: SCSIMOUNT command (enable SCSI tape mount option and set interval)

8.152 SF+ (Create a new shadow file)

8.152.1 Function

With the SF+ command a new shadow file for a certain dasd device (or for all dasd devices that have
shadow files) is created.

8.152.2 Syntax

Descriptive

Diagram

¬¬¬§¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬¬ÊÍ

8.152.3 Parameter

device

This specifies the device for which a new shadow file will be created.

*

Specifying an asterisk it is possible to create a (new) shadow file for all dasd
devices that have a shadow file defined in their configuration file definition
statements.

8.152.4 Examples

Example 1:

Create a new shadow file for device 0148.

HHC00013I Herc command: 'sf+ 0148'

HHC00320I 0:0148 CCKD file[1] 'D:/MVS/SHADOW/MVSRES_1.CCKD': shadow file succesfully added

HHC00333I 0:0148 size free nbr st reads writes l2reads hits switches

HHC00335I 0:0148 --------------------------------------------------------------------

HHC00336I 0:0148 [*] 21623269 0% 0 0 0 0 0 0

HHC00338I 0:0148 D:/MVS/DASD/MVSRES.CCKD

HHC00339I 0:0148 [0] 21621981 0% 0 rd 0 0 0

HHC00340I 0:0148 D:/MVS/SHADOW/MVSRES_*.CCKD

HHC00341I 0:0148 [1] 1288 0% 0 rw 0 0 0

Figure 280: SF+ command
