Page of SA21-9213-0
Issued 15 September 1975
By TNL: SN21-0247

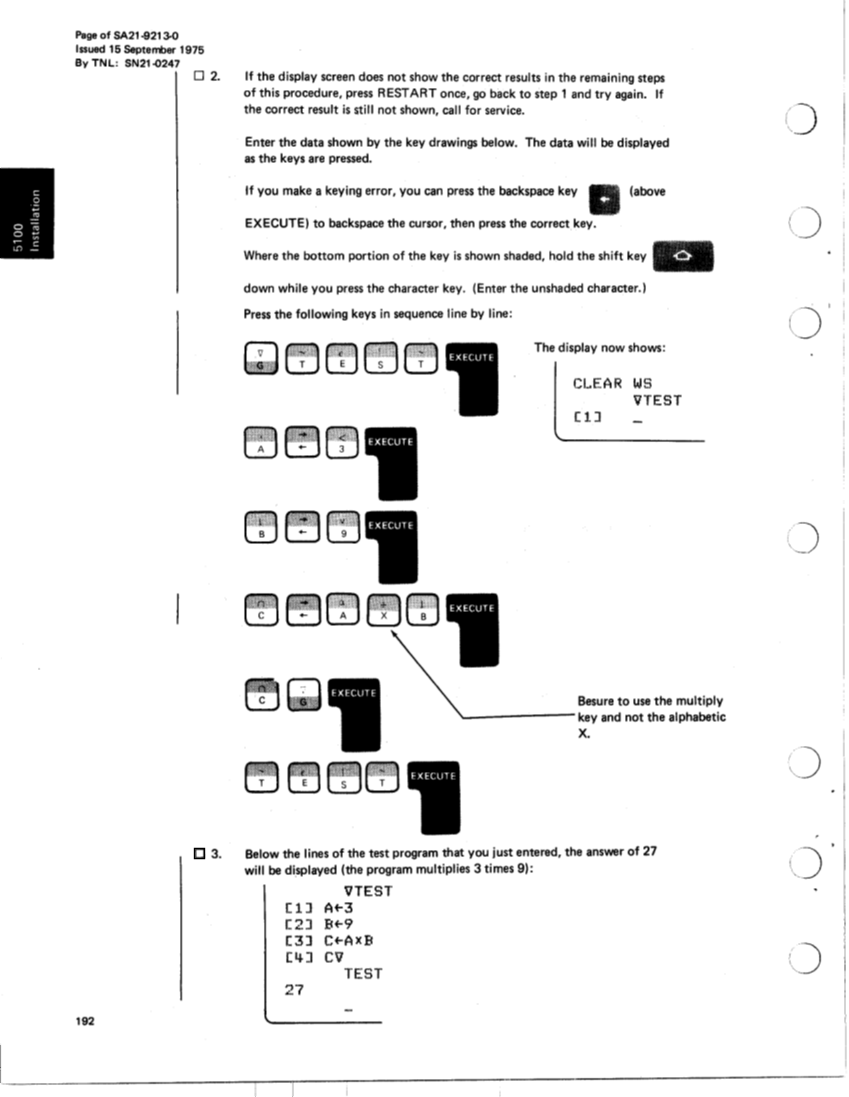

0 2. If the display screen does not show the correct results in the remaining steps
of this procedure, press RESTART once, go back to step 1 and try again. If
the correct result is still not shown, call for service.
Enter the data shown by the key drawings below. The data will be displayed
as the keys are pressed.
192
If you make a keying error, you can press the backspace key
EXECUTE) to backspace the cursor, then press the correct key.
(above
Where the bottom portion of the key is shown shaded, hold the shift key
I down while you press the character key. (Enter the unshaded character.)
Press the following keys in sequence line by line:
I
The display now shows:
CI.,E:AR WE3
CI3 -
Q'YEST
Besure to use the multiply
key and not the alphabetic
X.
3.
Below the lines of the test program that you just entered, the answer of 27
will be displayed (the program multiplies 3 times 9):
I.
IF
Page of SA21-9213.0
Issued 15 September 1975
By TNL: SN21-0247
I 0 4. If you checked out the tape operation under the BASIC checkout procedures,
insert the tape cartridge into the 5100 and go to step 6. Remove an unused or
scratch tape cartridge from its package. Check that the arrow is pointing away
from the word SAFE as shown in the illustration. Insert a coin or screwdriver
into the slot if you must turn the triangular arrow away from the word SAFE.
Nore: Do nor use any prerecorded tape cartridges that were shipped with your
machine.
This edge goes into machine first.
0 5A. Insert the tape cartridge into the 5100 (metal bottom down), and press it in
until it seats firmly. Then press the following keys (you must leave a space
before each number):
space space space
58. The previous step initialized the tape to hold information. If a message of
MARKED is displayed, go to step 6. If a message of ALREADY MARKED is
displayed, the tape is already marked. To remark the tape, press:
0 6. Press the following keys:
space space
193
